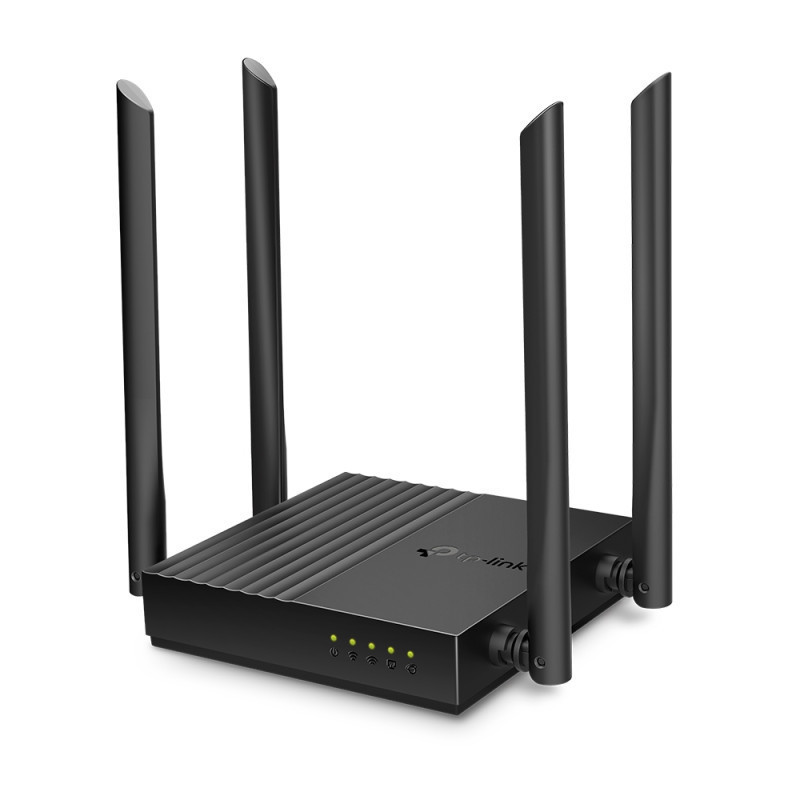

ROUTER ARCHER C64 AC1200 WIR DUAL BAND MU-MIMO 4 ANTENAS TP-LINK

WIRELESS

Standards and Protocols Wi-Fi 5

IEEE 802.11ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds AC1200

5 GHz: 867 Mbps (802.11ac)

2.4 GHz: 400 Mbps (802.11n)

WiFi Range 3 Bedroom Houses

4× Fixed High-Performance Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity Medium

Dual-Band

Allocate devices to different bands for optimal performance

MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

Airtime Fairness

Improves network efficiency by limiting excessive occupation

Working Modes Router Mode

Access Point Mode

SEGURIDAD

Network Security SPI Firewall

Access Control

IP and MAC Binding

Guest Network 1× 2.4 GHz Guest Network

1× 5 GHz Guest Network

WiFi Encryption WPA

WPA2

WPA3

WPA/WPA2-Enterprise (802.1x)

HARDWARE

Processor 1.2 GHz CPU

Ethernet Ports 1× Gigabit WAN Port

4× Gigabit LAN Ports

Botones WPS/Reset Button

Power 12V = 1A

SOFTWARE

Protocols IPv4

IPv6

EasyMesh Mesh networking creates smooth, fast, stable roaming. Archer C64 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability.

Learn More>

Parental Controls URL Filtering

Time Controls

WAN Types Dynamic IP

Static IP

PPPoE(Dual Access)

PPTP(Dual Access)

L2TP(Dual Access)

Quality of Service QoS by Device

Cloud Service OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding Port Forwarding

Port Triggering

UPnP

DMZ

IPTV IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP Server

DHCP Client List

Address Reservation

DDNS TP-Link

NO-IP

DynDNS

Management Features Tether App

Webpage

Check Web Emulator>

OTHER

System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications CE, RoHS

Environment Operating Temperature: 0?~40? (32? ~104?)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power CE:

<20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)

FCC:

<30dBm(2.4 GHz & 5 GHz)

WiFi Reception Sensitivity 5 GHz:

11a 6Mbps:-95dBm

11a 54Mbps:-77dBm

11ac VHT20 MCS8:-71dBm

11ac VHT40 MCS9:-67dBm

11ac VHT80 MCS9:-63dBm

2.4 GHz:

11g 6Mbps: -96dBm

11g 54Mbps: -78dBm

11n HT20 MCS7:-77dBm

11n HT40 MCS7:-74dBm

11ac VHT20 MCS8:-73dBm

11ac VHT40 MCS9:-68dBm

PHYSICAL

Dimensions (W×D×H) 4.7 × 4.7 × 1.1 in

(120 × 120 × 27.9 mm)

Package Content Wireless Router Archer C64

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide
